C.F. Martin 1840's Spanish Style Guitar
The "Spanish" Martin is a distinct style with specific features clearly
showing Martin's awareness of the pre-Torres guitar in Spain.
This guitar is a fine example of Martin's version of a Spanish guitar,
with all the typical features: cedar neck with elegantly curved
Spanish heel, Spanish style interior false foot, tie bridge, fan braces,
two piece rosewood sides with a decorative lengthwise center strip
dividing the two pieces, and back with rosewood veneer.
While having the fancy appearance of a "presentation" guitar, this example
is a typical Spanish Style guitar which was clearly built to be played,
with a large, long scale, modern feeling neck, which gives this guitar the
feel in hand of a much larger guitar.
1840's Spanish Style Martin Guitar
Built by C.F. Martin in the 1840's.
Slightly larger than Size 3, with unusual 4" depth and longer 24.5" scale
Soundhole and edge of top bordered in unique pattern of mother of pearl
diamonds set in mastic
with additional ring of abalone in center of rosette
Multicolored marquetry on back stripe, as well as center and edges of
Solid ivory pyramid tie style bridge
Ivory bordered flat style peghead with pegs
Spanish Style foot

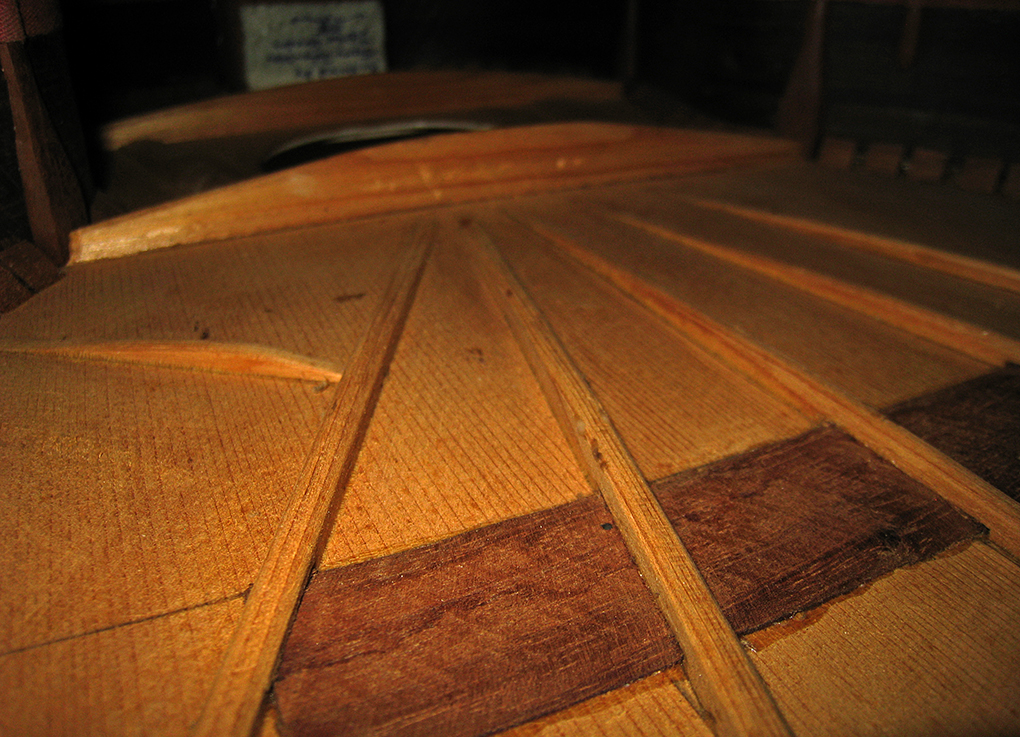

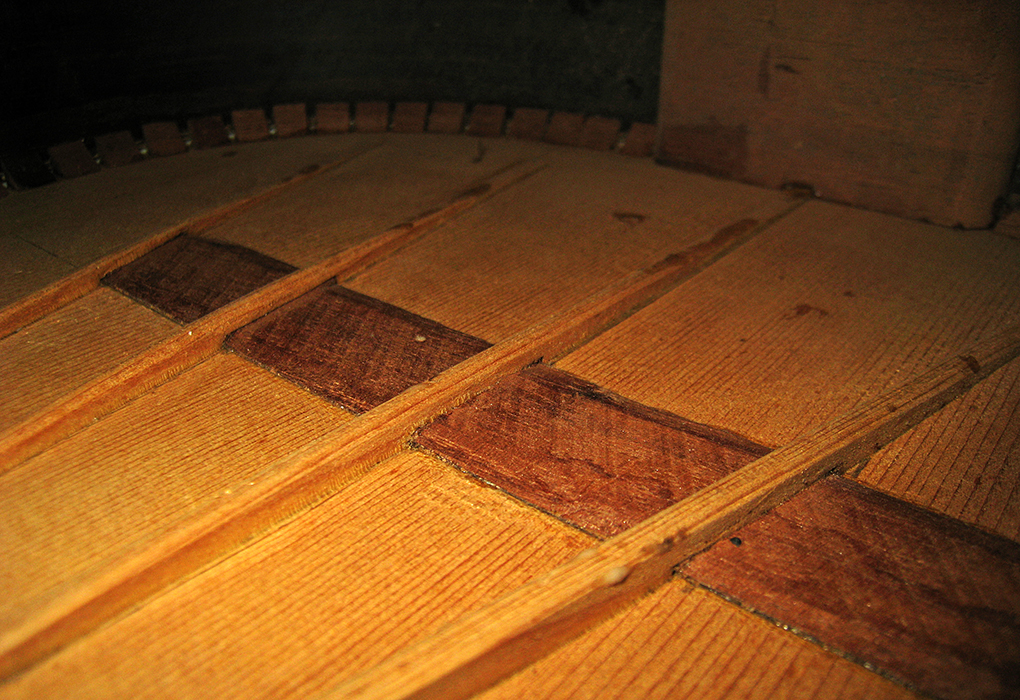

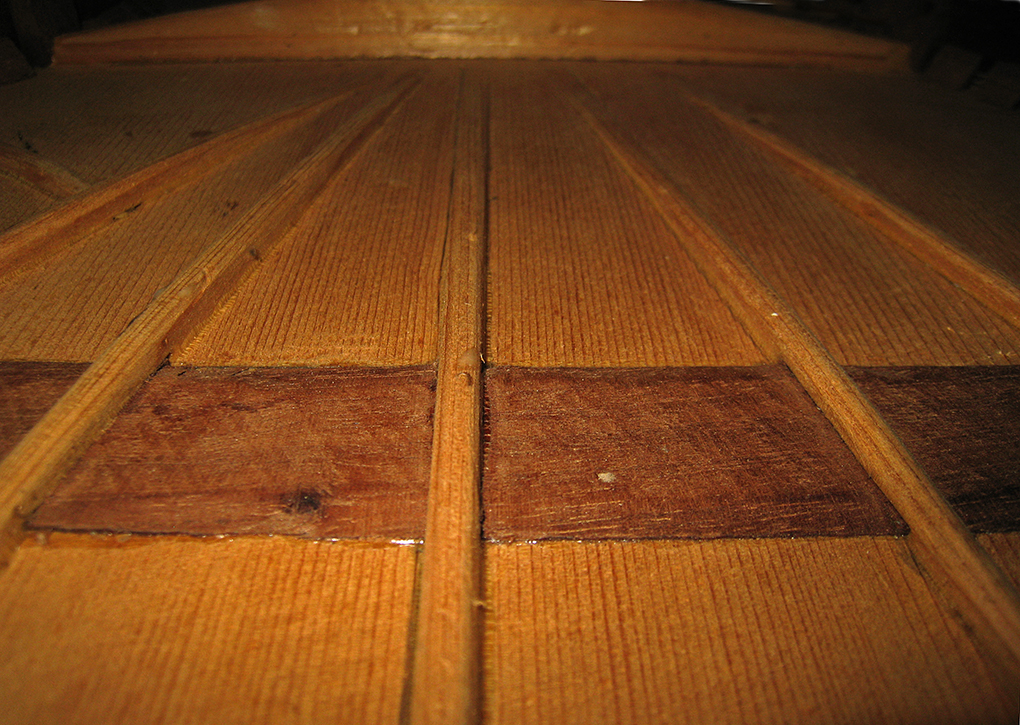

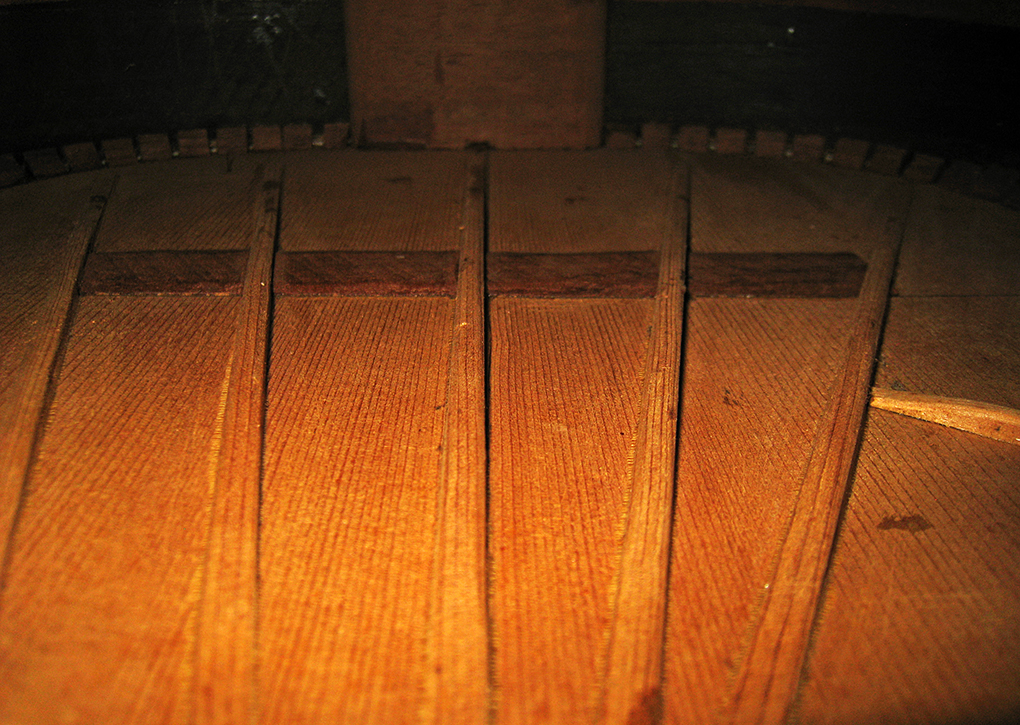

fan bracing (not ladder braced as suggested in Gura.)
Original coffin style case
Body width: 11.5"
Upper body width: 8 15/32"
Body length: 17.5"
Upper body depth: 3 9/16"
Lower body depth: 4"
Neck width at nut: 1 7/8"
Neck width at 12th fret: 2 5/16"
Soundhole: 3 13/32"
String spacing at bridge: 2 13/32"
Top braces: 5 blade fan
Back braces: 2 thin 9/16"
Stamp: "C.F. Martin New York"
Illustrated on plate 3-13 and 3-14, of Gura "C.F.Martin, His Guitars,
From Matt Umanov's Web Site:
This top-grade and most unusual Martin from the 1840's has just recently
come to us from Scandinavia. The man we acquired it from stated that he
had traced the history of its ownership in Sweden - through family records
of dated wills - back as for as the 1870's.
It is nominally a size three, although the body is considerably deeper
(4") than the dimensions given for that size in Martin literature. Most
interestingly, it also has a longer scale; at 24.5", it is nearly that of
a grand concert size Martin. This suggests possible construction for
concert use, as it gives the guitar an amazingly sonorous tone, far out of
proportion to its size. The edge of the top and the soundhole are bordered
with a unique pattern of mother-of-pearl diamond shapes set in mastic,
with an additional ring of abalone in the rosette. The bridge is of solid
ivory, with the type of wide "ski-slope" saddle found only on the earliest
Martins. There is a fancy multi-colored backstripe, with matching stripes
along the center of the sides of the instrument, and more matching
marquetry along the edges of the sides; there is also a solid ivory
endplate with mitered border.
The peghead is of the solid type, with a solid ivory edge. The ebony
tuning pegs are of the original type, but are probably not the original
ones. There is also the "false foot" feature in front of the neck block,
typically found on better Martins of the 19th century; the neck block
itself is stamped "CF Martin New York", as are the inside of the back and
the rear of the peghead.
Other than some minor work in a small area of the back and some
restoration work on the peghead, this guitar is quite original, with
original finish, frets, etc., etc., and is free of major cracks. The
wooden case is original as well, with a narrow gold stripe painted near
the edge of the top, a feature previously seen on other Martin cases of
the period. A truly rare and unique early Martin guitar.
